    clear water filling line

    Specifications

    clear water filling line
    1.PET bottle water filling line
    2.3 in 1 water filling line
    3.ISO,CE,SGS

    clear water filling line


    1.Product recommendation

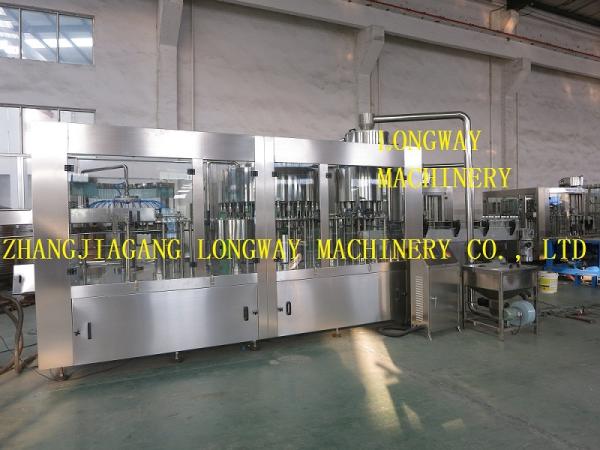

    (1) clear water filling lineincludes: Washing-filling-capping 3 in 1 machine, lamp inspection, label shrinking machine, inkjet printer, hot shrink film packer and conveyors. It is a full automatic production line.


    (2)The clear water filling line is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.


    (3)The clear water filling line is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.


    (4)The clear water filling line filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.


    (5)The advanced OMRON programmed controller (PLC) is adopted to control the clear water filling line to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.


    (6)The clear water filling lineis convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.


    (7)The filling category of lower vacuum (Z type machine) is applicable in glass bottles, filling alcohol, soy and such like materials. The aluminum theft proof cap and plastic cap can be adopted. The clear water filling line is an idea-preferred equipment for beverage maker.


    2.Main technological data


    Model

    Washing

    heads

    Filling

    heads

    Capping

    heads

    Capacity(b/h)

    500ml

    Motor power

    (KW)

    Overall dimension


    (mm)

    CGF14-12-4

    14

    12

    4

    2000-4000

    1.5KW

    2100x1400x2500

    CGF18-18-6

    18

    18

    6

    5000-7000

    2.2KW

    2460x1720x2650

    CGF24-24-8

    24

    24

    8

    8000-12000

    3KW

    3100x2100x2650

    CGF32-32-10

    32

    32

    10

    12000-15000

    4KW

    3500x2500x2650

    CGF40-40-10

    40

    40

    10

    16000-20000

    7.5KW

    4600x1800x2650

    CGF48-48-12

    48

    48

    12

    20000-24000

    9.5KW

    5200x4500x3400

    CGF60-60-15

    60

    60

    15

    25000-30000

    12KW

    6500x45
