Specifications

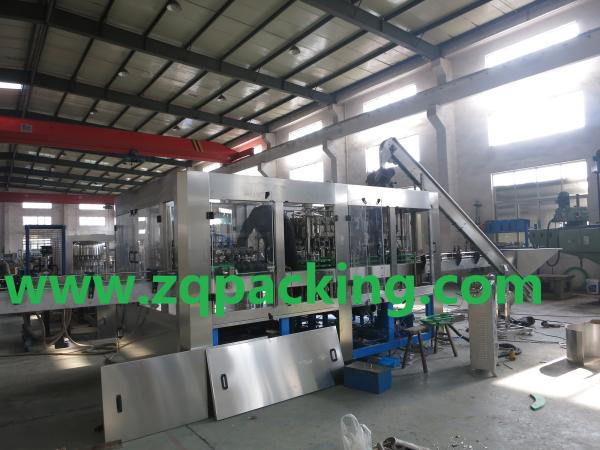

Beer rinsing, filling, capping 3 in 1 machine, full-automatic,excellent mechanical operation reliability

This machine is my company's(Longway) introduction of German technology, combined with the characteristics of beer production industry, designed to develop beer filling equipment. The machine has excellent mechanical operation reliability, improved rinsing, filling, cover screwing, disinfection and other functions.

Structural Features:

1, The rinsing machine usinghigh-strength stainless steelbottles of spring-loaded folders, to ensure a stable reversal of the glass bottles. The nozzle is a plum-like structure can wash every corner of the sidewall and bottom to make the bottle clean.

2, Filling machine withspring-type mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use ofguide-rodin the orientation of the structure, thereare pre-cover features.

3, Usinghigh-precision mechanical filling valve, with cylinder liquid level and the back pressure controlled by a variable signal proportional.Fast, stable, accurate, to be vacuum one at a time.

4,Stainless steel plungerandmechanical stirring gland-type magnetic reasonable capto ensure that the gland is healthy and reliable. Hopper and the cap taking- cover, capping transmitted by magnetic.The capping is reliable and automatic unloading, reducing the rate of broken bottles.

5, Before capping, using hot water bubble settings to displace bottlenecks air,ensuring the oxygen content of less than 0.15mg / L.

6, Filling machines includes broken bottle automatically stopping valve, broken bottle washing, and foam automatically exhausting device.

7, Withperfect CIP cleaning function, and capable of rinsing filling pipes with acid, lye liquid or hot water.

All the materials contacted with the valves, tanks, pipes are made of stainless steel N304 materials, inside and outside of the wall are mirror-polished, ensuring non- insanitary sites.

8,Manually dry oil lubrication systemto make sure equipment maintenance more convenient.

9, The whole operation adoptsadvanced man-operational interface, PLC control, frequency conversion stepless speed regulationand other automatic control technology, with no bottle no open valves, no stamps; no caps no operation, and other security protection.

Main technical parameters:

Zhangjiagang Longway Machinery Co., Ltd,is a hi-tech designing & manufacturing enterprise specialized in Filling machinery and other kinds of beverage machinery in china. We offer clients from a single machine to a complete production line, our main products include:

automatic stretch blow molding machine

injection molding machine

PET bottle blow mold

3000-36000b/h mineral water & pure water processing and filling line;

3000-36000b/h fruit juice & iced tea hot processing and filling line;

100-2000b/h 5 gallons series bottling lines;

2000-36000b/h carbonated drink processing and cold filling line;
